Led Outdoor Display Module Panel

As a professional high quality Led Outdoor Display Module Panel manufacturers, you can rest assured to buy Led Outdoor Display Module Panel from RGXLED and we will offer you the best after-sale service and timely delivery.

500*500mm-P3.91mm LED video panel

the cabinet appearance will be different in different time, we use the newly produced one, cabinet material is the same.

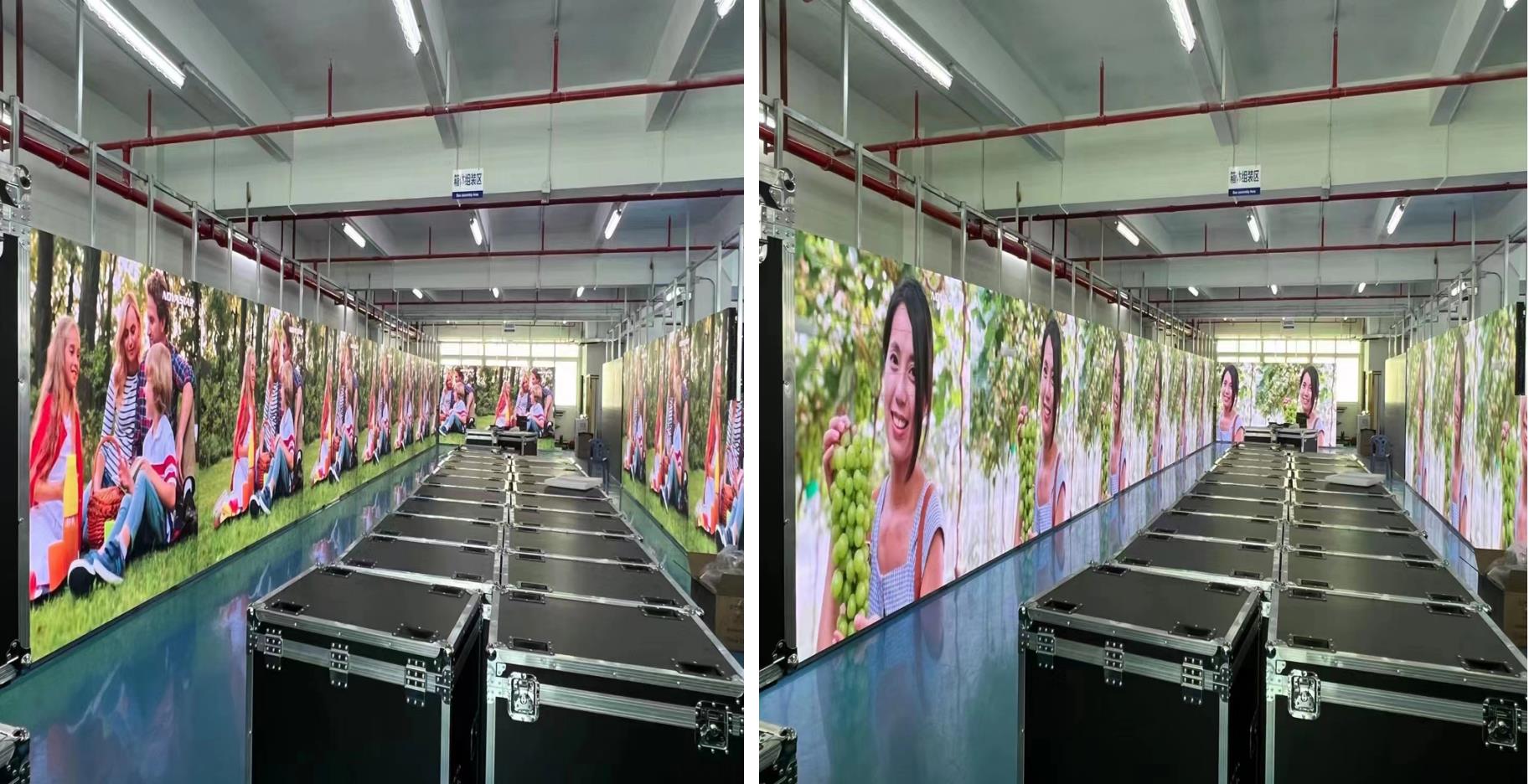

500*500mm  cabinets can be combined freely

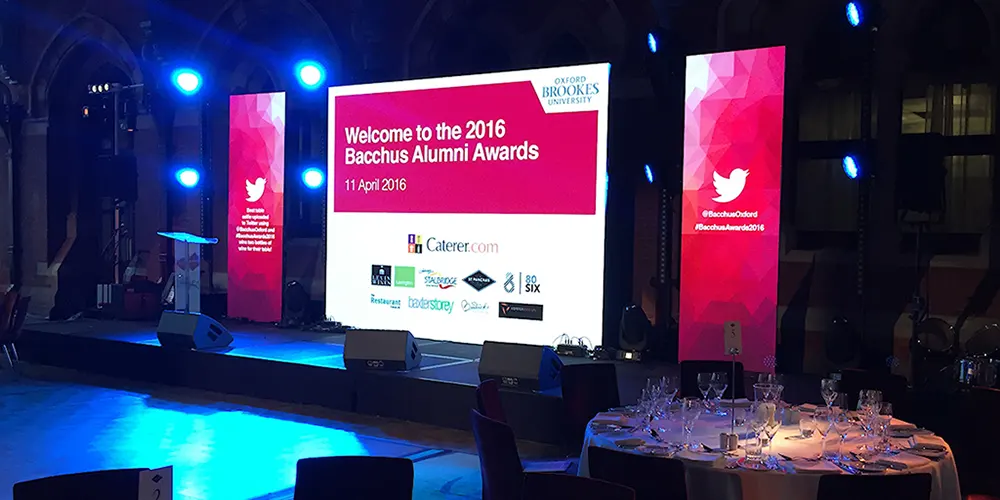

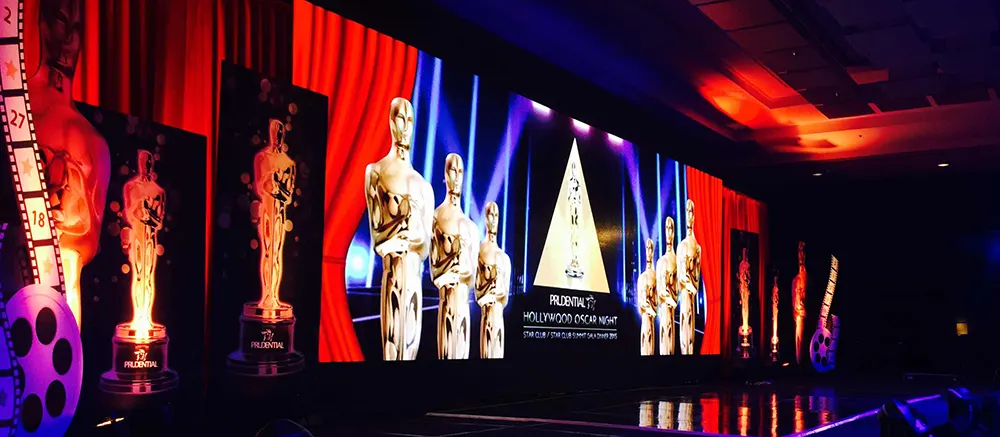

More convenient to adapt to different styles of stage

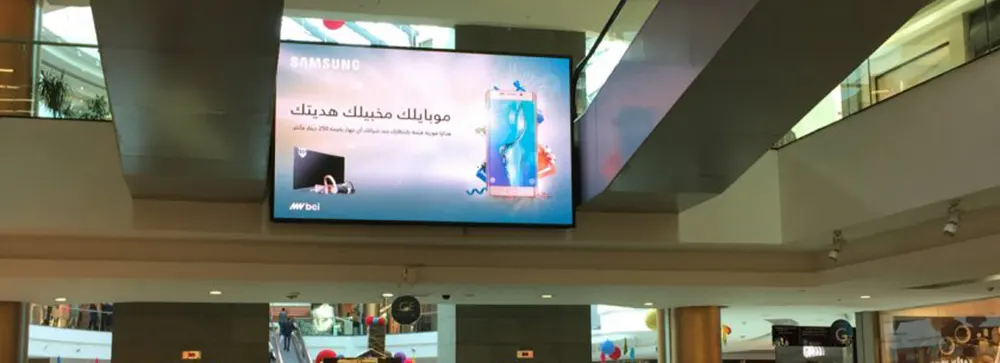

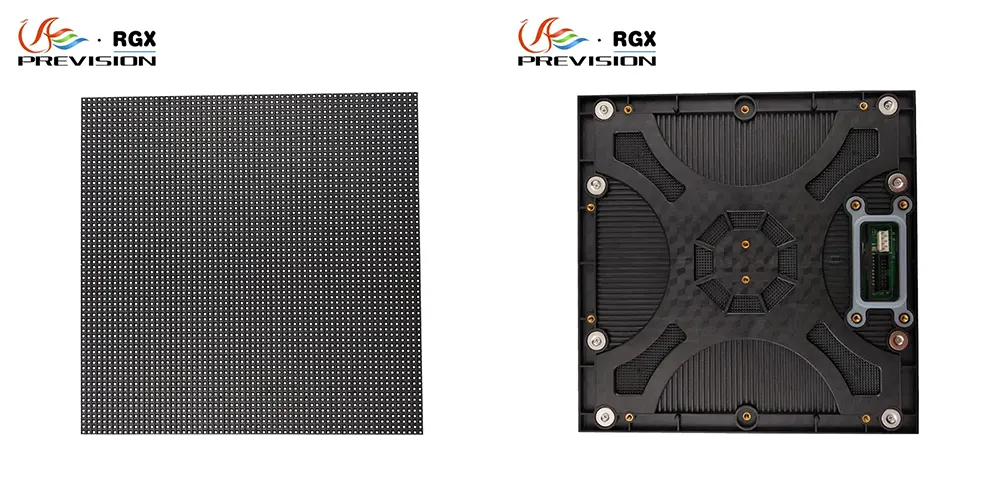

Led Outdoor Display Module Panel Outdoor P3.91

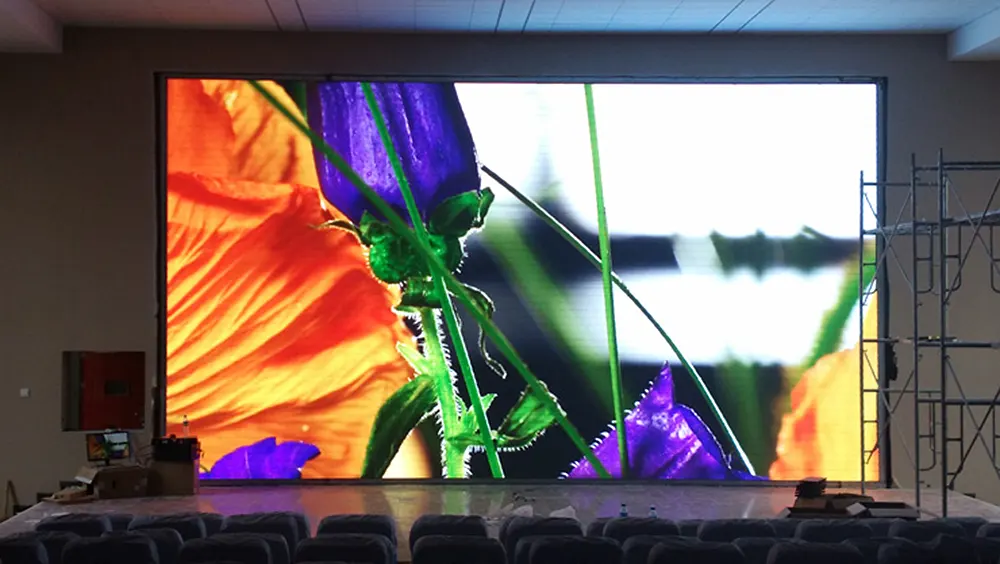

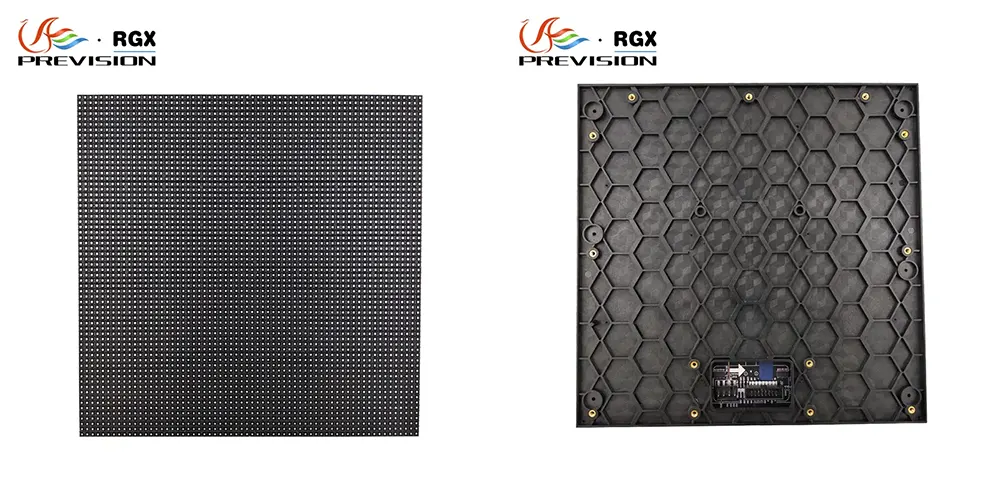

Led Outdoor Display Module Panel Indoor IP3.91

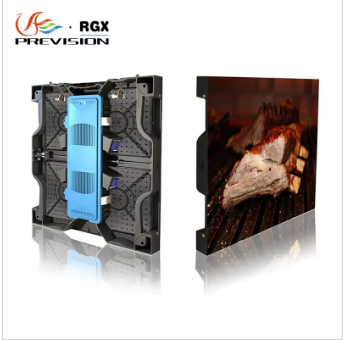

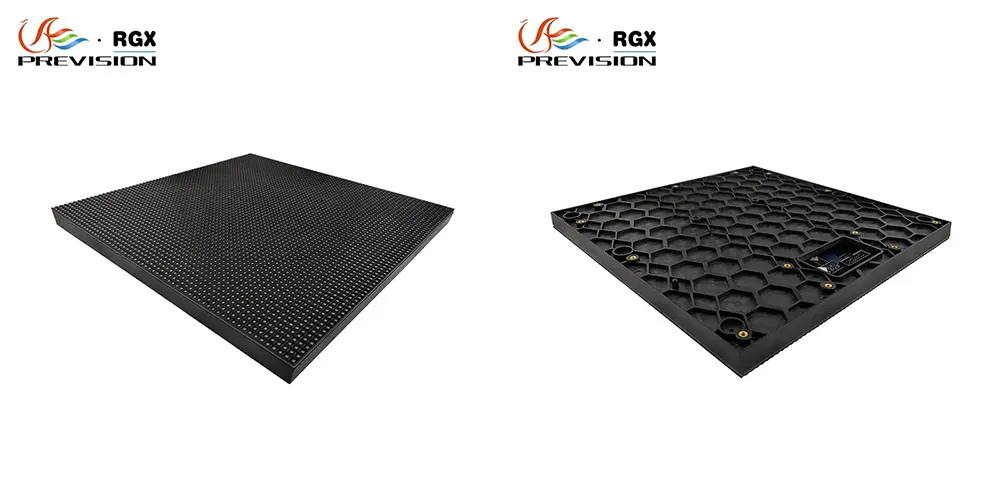

Led Outdoor Display Module Panel Rendering

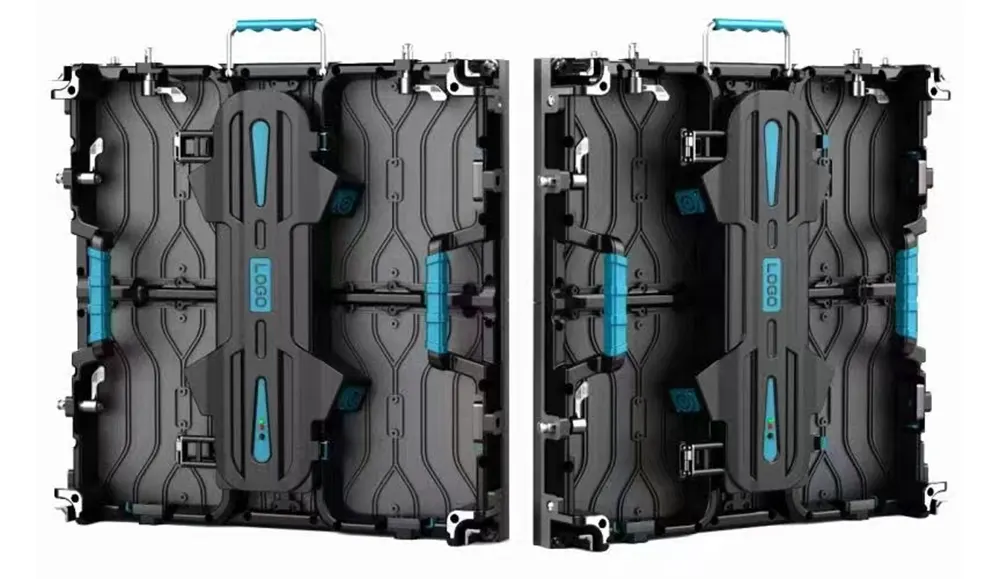

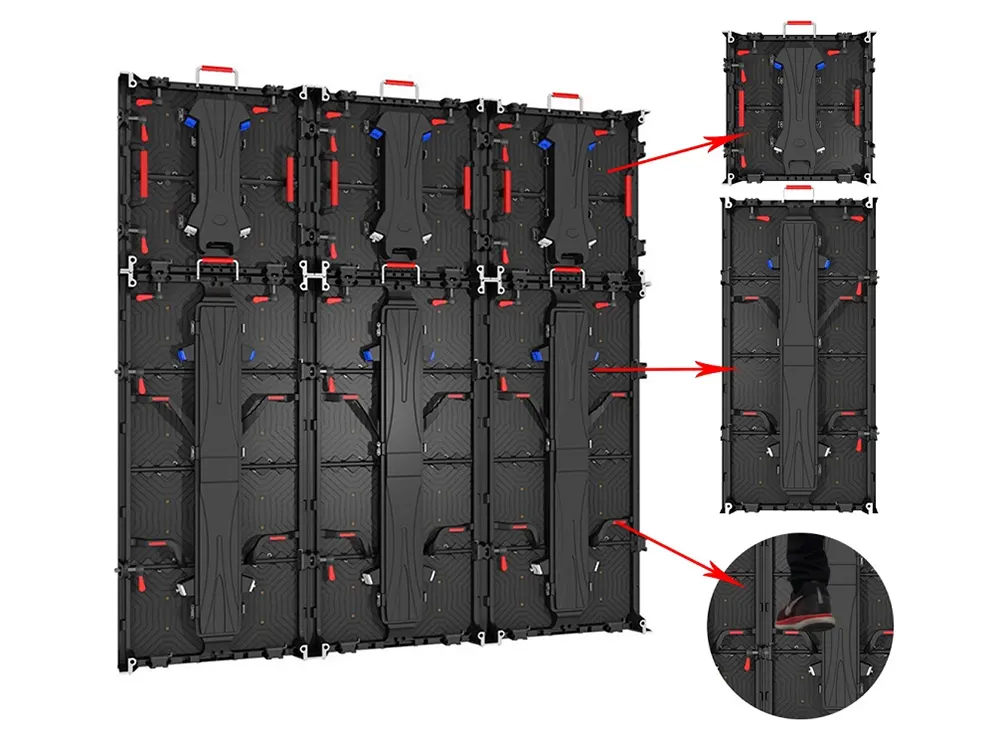

P3.91mm die cast aluminum video cabinet

slim & light / fast assemble& disassemble /movable use

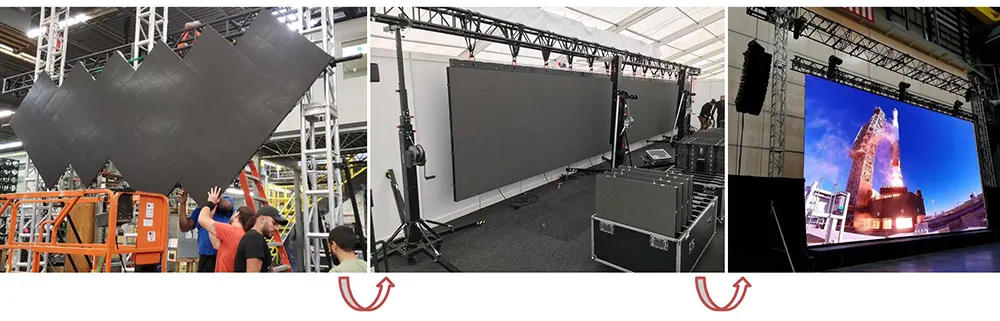

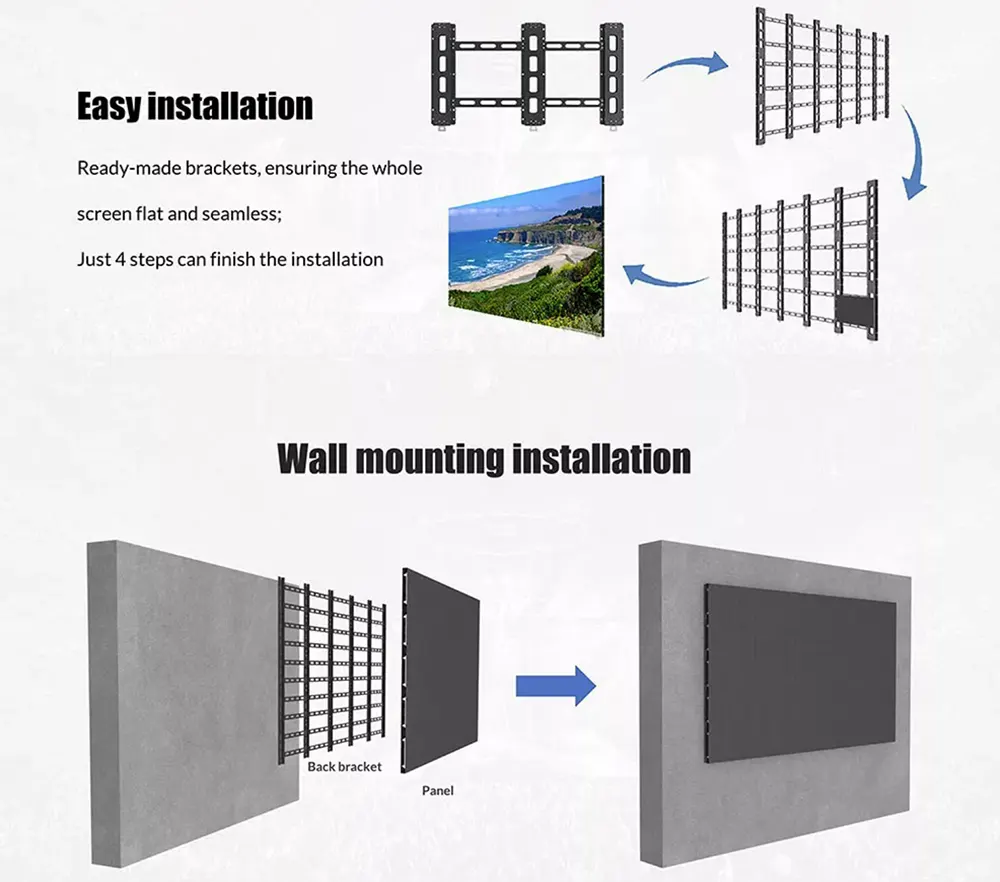

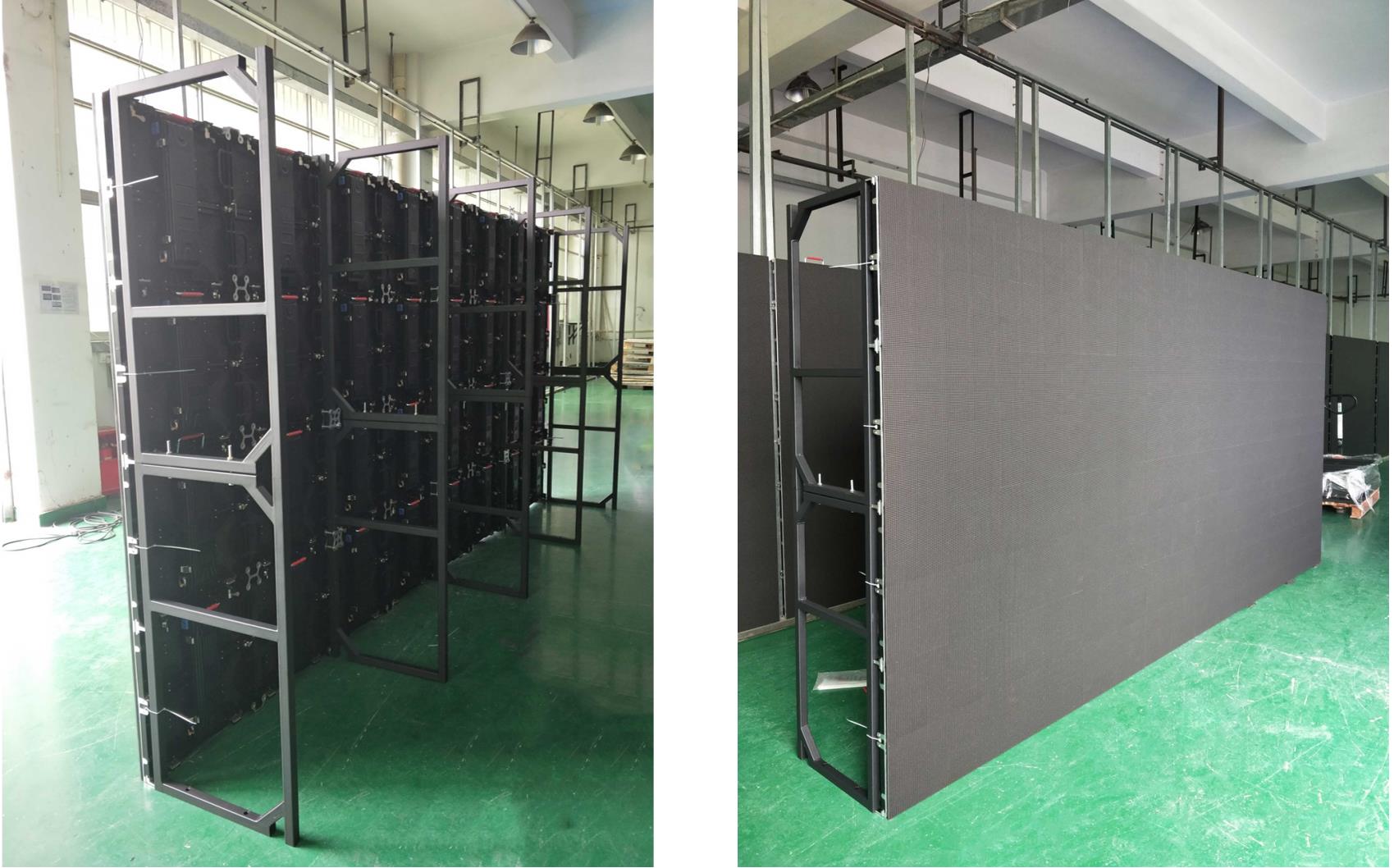

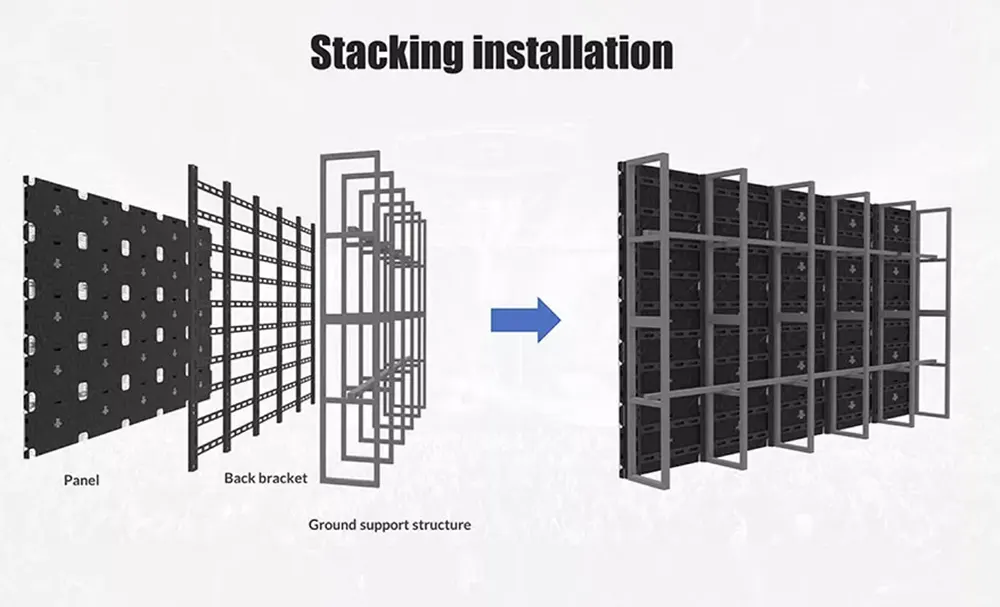

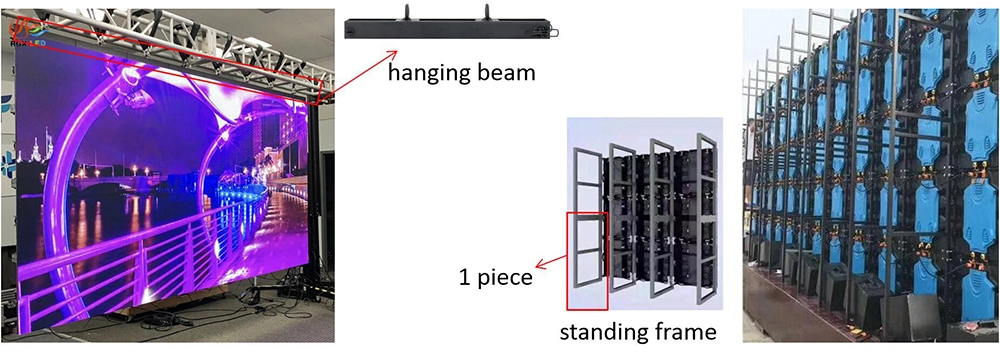

RGX design: Easy installation

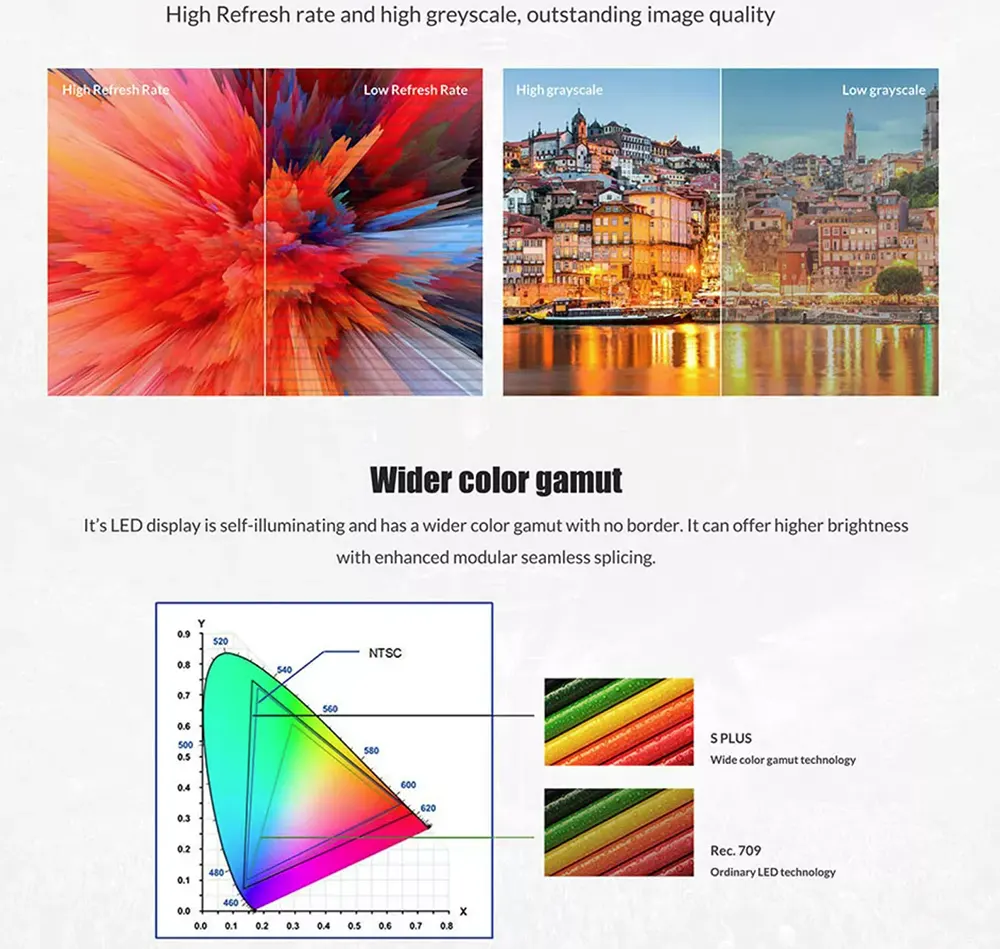

1,RGX high refresh rate and high greyscale, outstanding image quality

2, Wider color gamut (RGX)

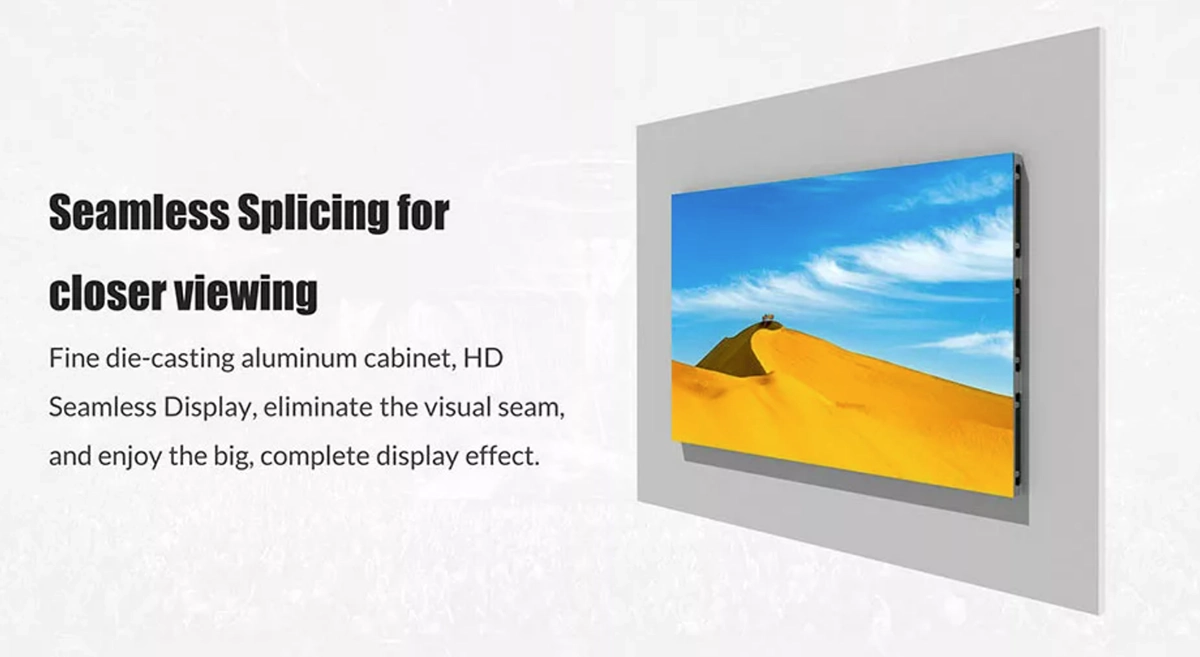

It’s LED display is self-illuminating and has a wider color gamut with no boarder. it can offer higher brightness with enhanced modular seamless splicing

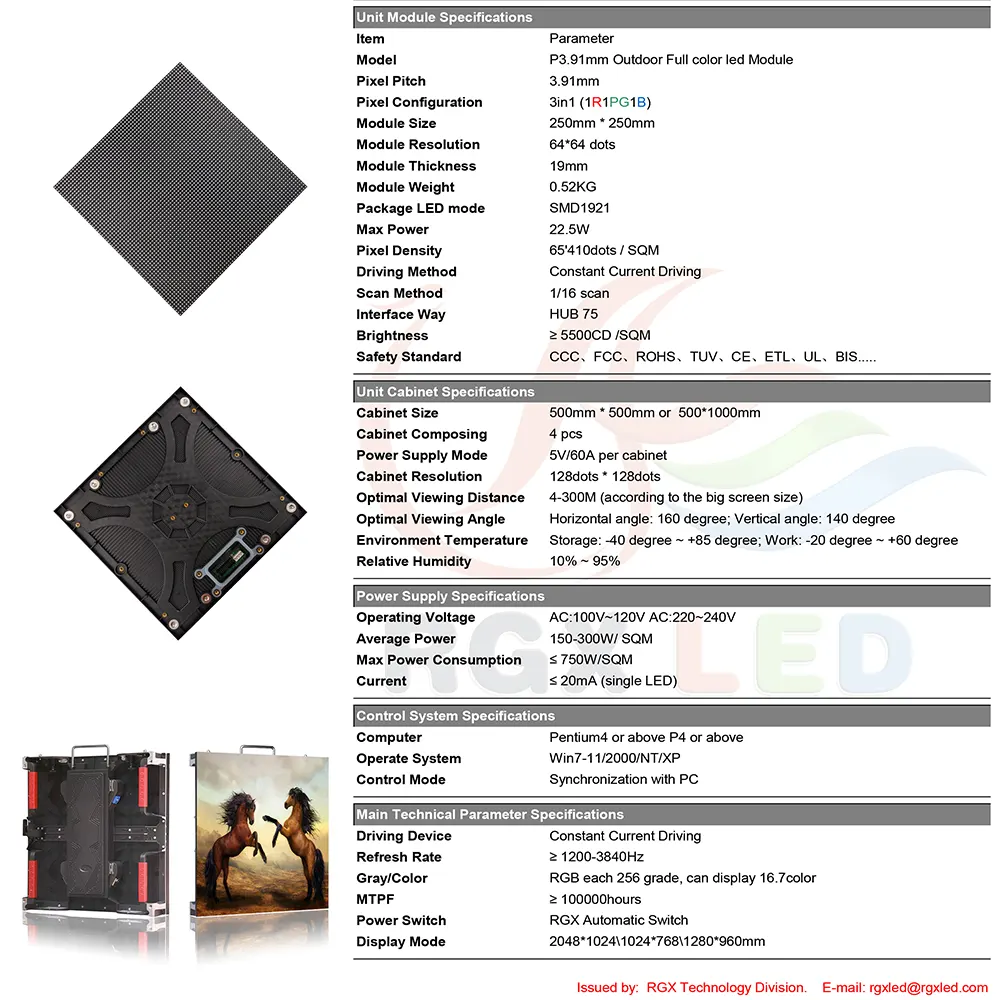

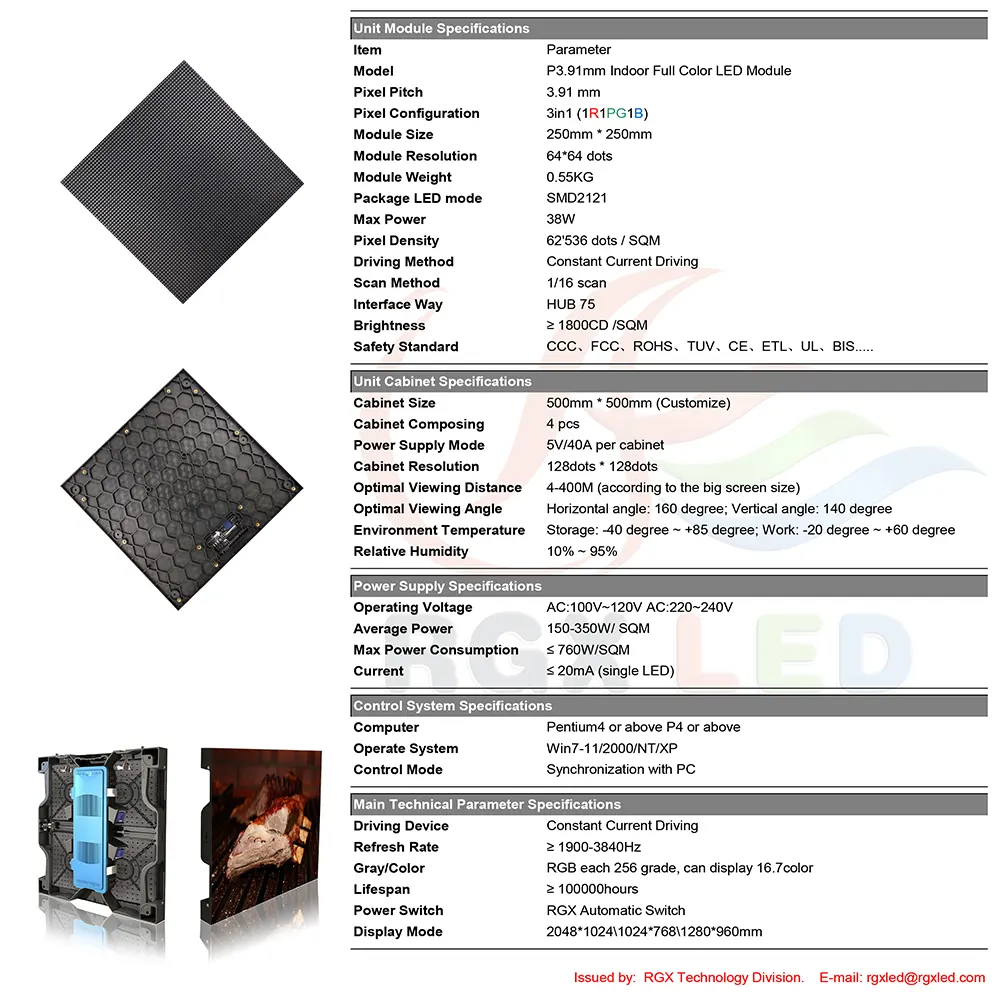

Led Outdoor Display Module Panel Detailed technical parameters

Tub Chip Specs
ItemsWave LengthModel No.Manufacturer
Red LED623-625nm620 ±2 mcdNationstar
Green LED523-525nm520 ±2 mcdNationstar
Blue LED468-470nm470 ±2 mcdNationstar

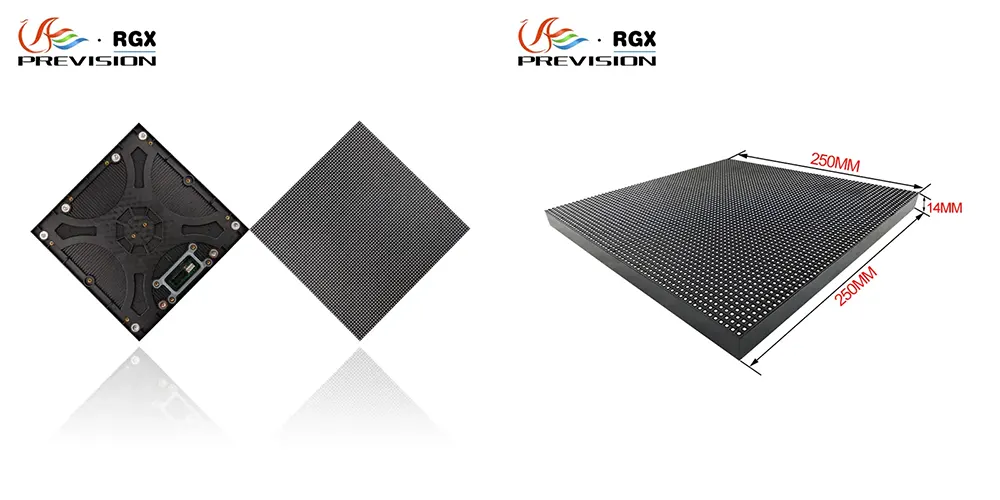

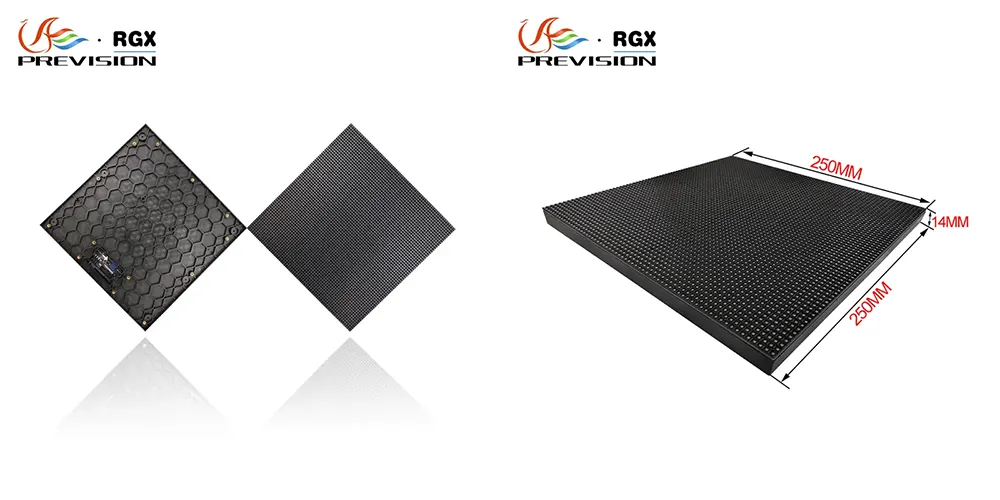

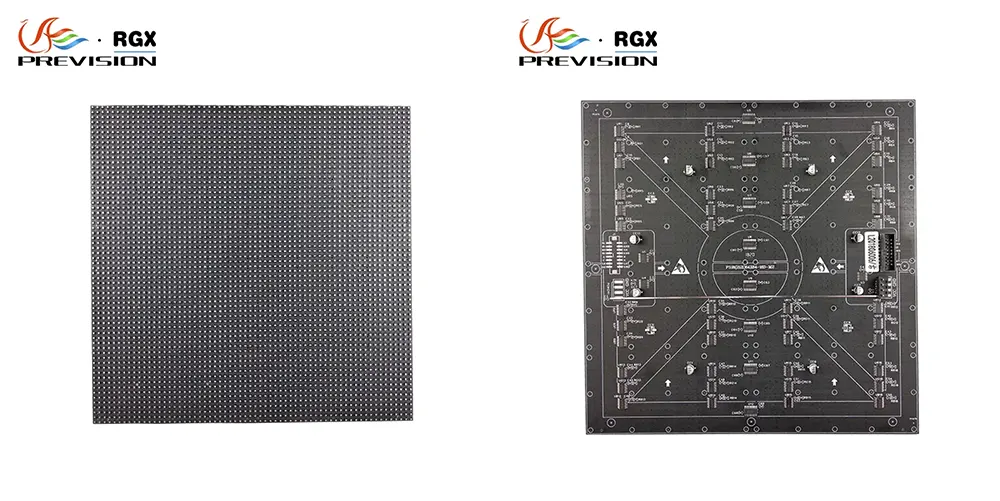

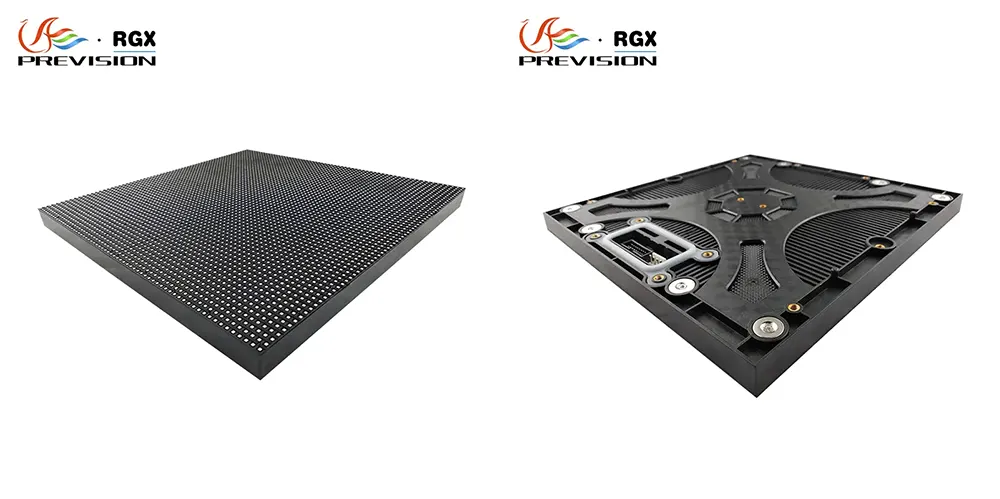

LED Module/Tile Specs
Pixel pitch3.91mm
Size250X250mm
Resolution64(W)x64(H) pixels
LED chips brandNationstar
LED chips modelSMD1921
Scanning1/16 scan
IP levelIP45
Other serviceSupport customized according to customer drawings

Cabinet Specs
Product Mode500x500mm(the back door maybe different in different month)
Cabinet resolution128x128pixels
Cabinet materialdie cast aluminum
LED modules quantity4 pieces on each led cabinet
Data processing card1 pieces
Main Power cable1 piece
Main Internet cable1 piece
Weight4.4kg/piece
Data cable4 pieces
5V power cable4 piece
Installation spare partsconnectors/connection pad (2 pieces) M10 screws(4 pieces)

LED Screen Specs
MTPF5000 hours
Lifespan100’000 hours
LED screen resolutionaccording to your size
Brightness0~1200 nits
Lifetime11 years

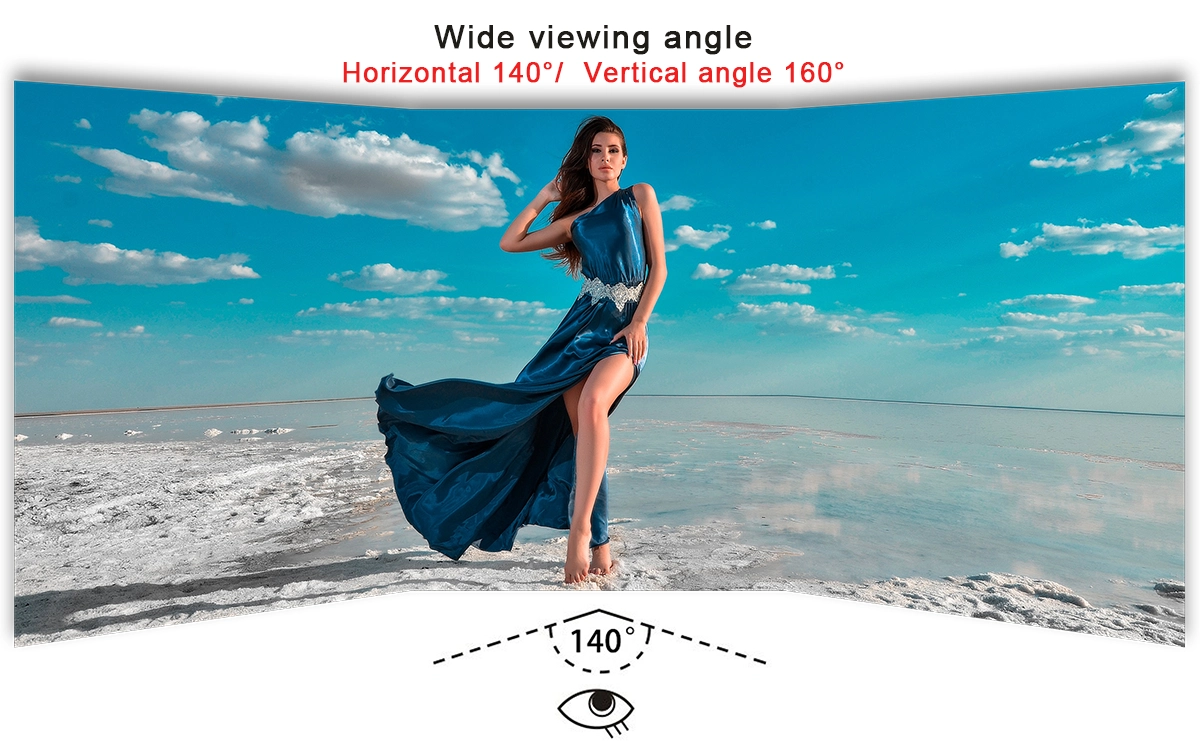

Horizontal /vertical angle140°/160°
Best Viewing distance4-400 meters
Refresh Frequency>3840HZ
Power consumeAverage:180W-200w/m² Max:550W/m²
Working temperature﹣35℃～65℃
Gray Scale:65536*65536*65536grade
Screen Color4.4 trillion colors
Input voltageAC220V±10%/AC110V±10%

RGX Certifications

RGX packing & delivery
